Sodium metabisulfite for dechlorination is used after chlorination to reduce free chlorine and some inorganic chloramine residuals before treated water is discharged or reused. Its theoretical demand is a starting point only; the operating feed must be established from measured residual chlorine, flow, contact and mixing conditions, the plant’s permit, and verification testing. This guide explains the reaction, the calculations behind an initial estimate, and the monitoring steps that help prevent both chlorine breakthrough and sulfite overfeed.
Continue for a practical process sequence, a comparison of dechlorination options, and a troubleshooting checklist for wastewater operators.
Chlorination can provide an important disinfection barrier, but a chlorine residual may remain after the required contact period. Where a discharge permit or reuse specification limits residual chlorine, a downstream dechlorination step may be needed. Sodium metabisulfite is one chemical option for that duty. It is a dry sulfite salt that dissolves in water and supplies reducing species that react with chlorine compounds.
For industrial facilities sourcing treatment chemicals through Silvari Group Trading, understanding the technical requirements of dechlorination is essential when evaluating chemical specifications, handling conditions, and supply considerations. As a company involved in chemical trading in Europe, Silvari provides a commercial point of reference for industrial chemical sourcing, while treatment performance must always be validated under actual plant operating conditions.
For a plant team, the central question is not
What sodium metabisulfite does in dechlorination
Sodium metabisulfite, also called sodium pyrosulfite, has the formula Na2S2O5. When it dissolves, it forms bisulfite and related sulfur(IV) species. Those species transfer reducing capacity to oxidants such as free chlorine. In simplified terms, chlorine is reduced to chloride while sulfite is oxidized mainly toward sulfate. The actual aqueous chemistry depends on pH, concentration, temperature, and the other constituents in the water.
This reaction explains why a sulfite salt can be used downstream of chlorination. It does not mean that every wastewater stream behaves like a clean laboratory solution. Suspended solids, organic matter, ammonia, other oxidants, and uneven flow can change chemical demand or make a sample less representative. A calculated amount is therefore a process estimate, not a substitute for field measurement or a validated control strategy.
Sodium metabisulfite should also be distinguished from sodium bisulfite and sodium sulfite. These materials can supply sulfite chemistry after dissolution, yet they are different compounds with different molecular weights, product concentrations, packaging forms, and theoretical mass requirements. A substitution by chemical name alone can produce the wrong feed setting. When comparing materials, process teams should convert the expected demand to the stated active basis and confirm the product concentration on its certificate or technical data sheet.
Why a wastewater plant may need a dechlorination step
After disinfection, residual chlorine can remain in an effluent stream. A permit may set a maximum residual, require a monitoring frequency, or specify a measurement method at a defined point. The conditions differ by jurisdiction, receiving water, facility, and permit. Operators should read the current authorization rather than assume that one national or supplier guideline supplies the site’s legal limit.
Dechlorination is generally positioned after the required disinfection contact period. Adding a reducing agent too early could consume disinfectant before it has completed its intended function. Adding it too late can leave too little contact time or a poor sampling point between the dose and discharge. The plant’s process diagram, hydraulics, and permit conditions determine the correct location and measurement point.
The goal is controlled removal of the residual needed to meet the site requirement. A “zero” reading is not automatically a better operating target. If a plant significantly overfeeds sulfite, the excess reducing agent can consume dissolved oxygen and may affect pH and downstream chemistry. A low chlorine reading must be interpreted alongside other monitored parameters and the discharge requirement.
Plants that use sodium hypochlorite for disinfection may find it useful to review the site’s chlorination step and its chemical characteristics before designing the downstream feed. The article on industrial uses of sodium hypochlorite provides related background on the oxidant side of that process. It does not replace a plant-specific engineering review.
How the reaction proceeds and what operators should infer from it
Free chlorine and combined chlorine
For simplified free-chlorine chemistry, the reactive chlorine species are reduced as sulfite is oxidized. Sodium metabisulfite dissolves and produces bisulfite species; the solution then reacts with hypochlorous acid or hypochlorite, depending on pH. In simplified form, the reaction consumes chlorine and generates chloride and oxidized sulfur products. This description is useful for understanding the process, but it does not predict the exact demand of a complex wastewater stream.
Two operating consequences follow. First, the chemical must be distributed quickly and evenly enough that the chlorine residual and reducing agent meet throughout the flow. A high local concentration near an injection point can coexist with untreated flow elsewhere if blending is poor. Second, a measurement taken too close to the injection point may not represent the fully mixed effluent. Sampling location and contact time are part of the control design, not administrative details.
Chloramines and other combined residuals can respond differently from free chlorine. The wastewater technology references discuss dechlorination of both free and inorganic chloramine residuals, but the plant still needs to confirm its own analyzer’s method and operating range. Total residual chlorine testing may be needed where the permit or process requires it. A free-chlorine measurement alone should not be assumed to represent every chlorine species.
Water chemistry can also shift during the day. Influent composition, disinfection dose, flow, temperature, pH, and process upsets may change the demand that reaches the dechlorination point. Automated feed tied only to flow can miss changes in chlorine residual; a residual-based feedback loop can improve adjustment where instrumentation, maintenance, and response logic are suitable. Many plants use a combination of feed-forward flow information and downstream residual verification.
Sodium metabisulfite for dechlorination: estimating demand safely
EPA design material gives a theoretical mass relationship of approximately 1.34 parts sodium metabisulfite per 1 part residual chlorine, expressed on a mass basis. In this context, chlorine residual is commonly reported as chlorine equivalent, such as milligrams per litre as Cl2. The ratio is a stoichiometric reference for an initial calculation. It is not a universal plant setting or a guaranteed dose for every flow and water composition.
A screening calculation can be written as:
Theoretical sodium metabisulfite mass rate = measured chlorine residual × flow rate × theoretical mass ratio.
Before using that relationship, keep units consistent. If the residual is in mg/L and flow is in L/s, the calculated mass rate must be converted to the chosen feed units. If the chemical is supplied as a solution or a product with a stated assay, the active fraction must be accounted for separately. If flow is in million gallons per day, use the appropriate unit conversion. Do not use a “dose per litre” from a different compound or solution strength as though it were the same product.
The theoretical value excludes several realities: chemical purity or assay, competing oxidants, mixing efficiency, analyzer uncertainty, changing flow, temperature, reaction time, and operational safety margin. A plant should avoid applying a blanket percentage above stoichiometry without evidence. Excess sulfite can increase sulfate, consume dissolved oxygen, and lower effluent pH under some conditions. The aim is to establish a controlled operating window through site testing, not to maximize feed.
A practical commissioning approach is to begin with the plant’s engineering basis and a qualified review, verify the chlorine residual immediately before dechlorination, adjust feed in controlled increments, and measure after adequate mixing and contact. The responsible team should record the tested flow, influent residual, chemical concentration, pump setting, contact conditions, outlet residual, dissolved oxygen, pH where relevant, and any permit-specific parameter. Use the test results to refine the setpoint and alarm limits.
For example, if a plant’s measured residual doubles while flow remains constant, a flow-only dosing system will not automatically respond unless the control strategy includes a residual signal or an updated setpoint. Conversely, if flow falls while chemical feed remains fixed, the applied chemical per unit volume may rise. These examples illustrate why operating data matter; they are not a dosing prescription for any facility.
A process sequence for planning and verifying dechlorination
The following sequence is a planning framework for qualified plant personnel. It is not a substitute for facility procedures, engineering drawings, chemical safety documentation, or permit requirements.
- Confirm the requirement. Identify the applicable chlorine residual limit, sampling point, monitoring frequency, approved method, reporting threshold, and any related dissolved oxygen or pH obligations. Check the current permit and regulator guidance.
- Characterize the stream. Measure flow and chlorine residual under representative operating conditions. Note whether results are free or total chlorine, how the sample is collected, and whether the analyzer has been calibrated and maintained.
- Choose the chemical form. Review the intended product grade, assay, SDS, packaging, solubility and feed-system compatibility. Compare chemical equivalents rather than relying on similar-sounding names.
- Establish a controlled starting basis. Use the approved design or a stoichiometric calculation to inform initial trials. Keep the calculation, unit conversions, assumptions, and product concentration visible to the operator.
- Provide suitable injection and mixing. The point of addition should allow full blending and the contact time needed by the process. Inspect static mixers, diffusers, pumps, check valves, tubing, and any known dead zones.
- Verify downstream performance. Test the effluent at the designated point using the method required by the permit or plant procedure. Compare the result with the limit and consider the confidence and response time of the analyzer.
- Adjust and document. Change feed only through approved operating procedures. Record what changed, the reason, the response, and any follow-up measurement. Escalate unexpected results rather than repeatedly increasing the dose.
- Review trends and maintenance. Periodically check sensor calibration, pump output, chemical age and condition, storage, flow signals, alarms, and sampling practice. Trend data can reveal drift that a single spot check misses.
This sequence creates a traceable loop from permit requirement to measurement, chemical feed, and verification. It also helps distinguish a chemistry problem from a mechanical or sampling problem.

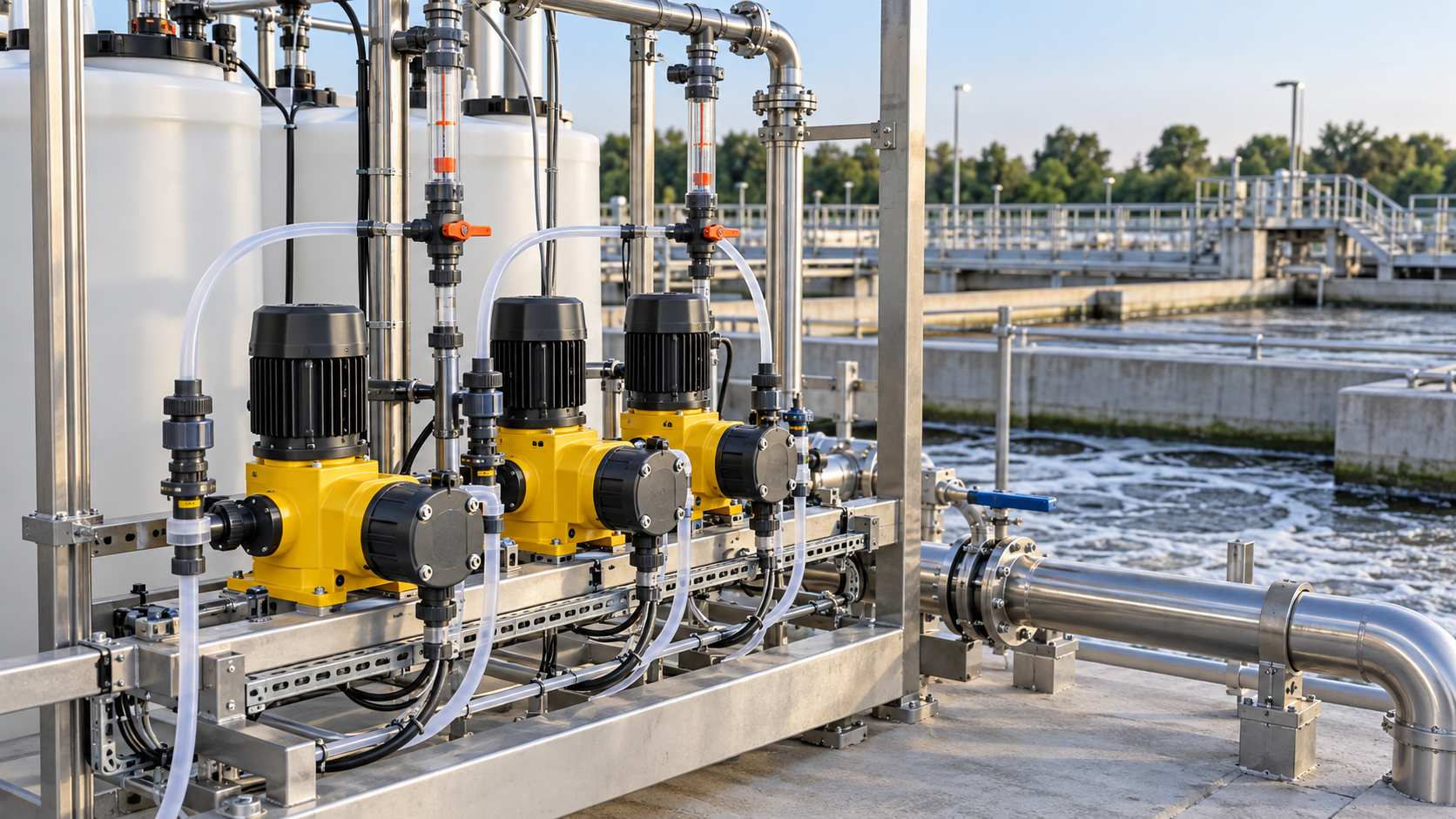

Where to inject the chemical and why hydraulics matter
Contact time, mixing, and representative sampling
Injection should be selected with the plant’s hydraulic profile in view. The dosing point must be downstream of the disinfection step it is intended to follow, while leaving enough opportunity for dispersion, reaction, and representative monitoring before discharge. The system designer may evaluate the pipe geometry, flow velocity, turbulence, mixer design, channel cross-section, and potential short-circuiting through tanks or channels.
A pump that delivers the calculated amount does not prove that every part of the flow receives that amount. Poorly positioned injection can create a concentrated plume that reacts near the wall while chlorine-rich water bypasses it. A sampling point located in the plume may produce an artificially low result. Where performance is inconsistent, inspect mixing and sampling before simply raising the feed setting.
Contact time should be based on the system and the species being treated, with complete blending first. EPA technical material describes short contact intervals in certain dechlorination contexts, but a plant should use the design basis that applies to its own flow and permit. A published value from a different process does not override local engineering or regulatory requirements.
Temperature, pH, solids, and residence-time distribution can all affect how a result appears at the monitoring point. The control strategy should account for the response delay between a feed adjustment and a downstream measurement. Operators need a clear procedure for how long to wait before judging a change and how to prevent rapid, repeated adjustments that cause oscillation.
Monitoring chlorine residual and protecting against a misleading reading
Residual testing is the evidence that the process is working. Use the measurement method and sample handling required by the plant’s permit or standard operating procedure. Common field and laboratory methods are not interchangeable in every matrix, and an analyzer’s display can be affected by calibration, sample-line condition, reagent age, interferences, flow-cell cleanliness, and operator technique.

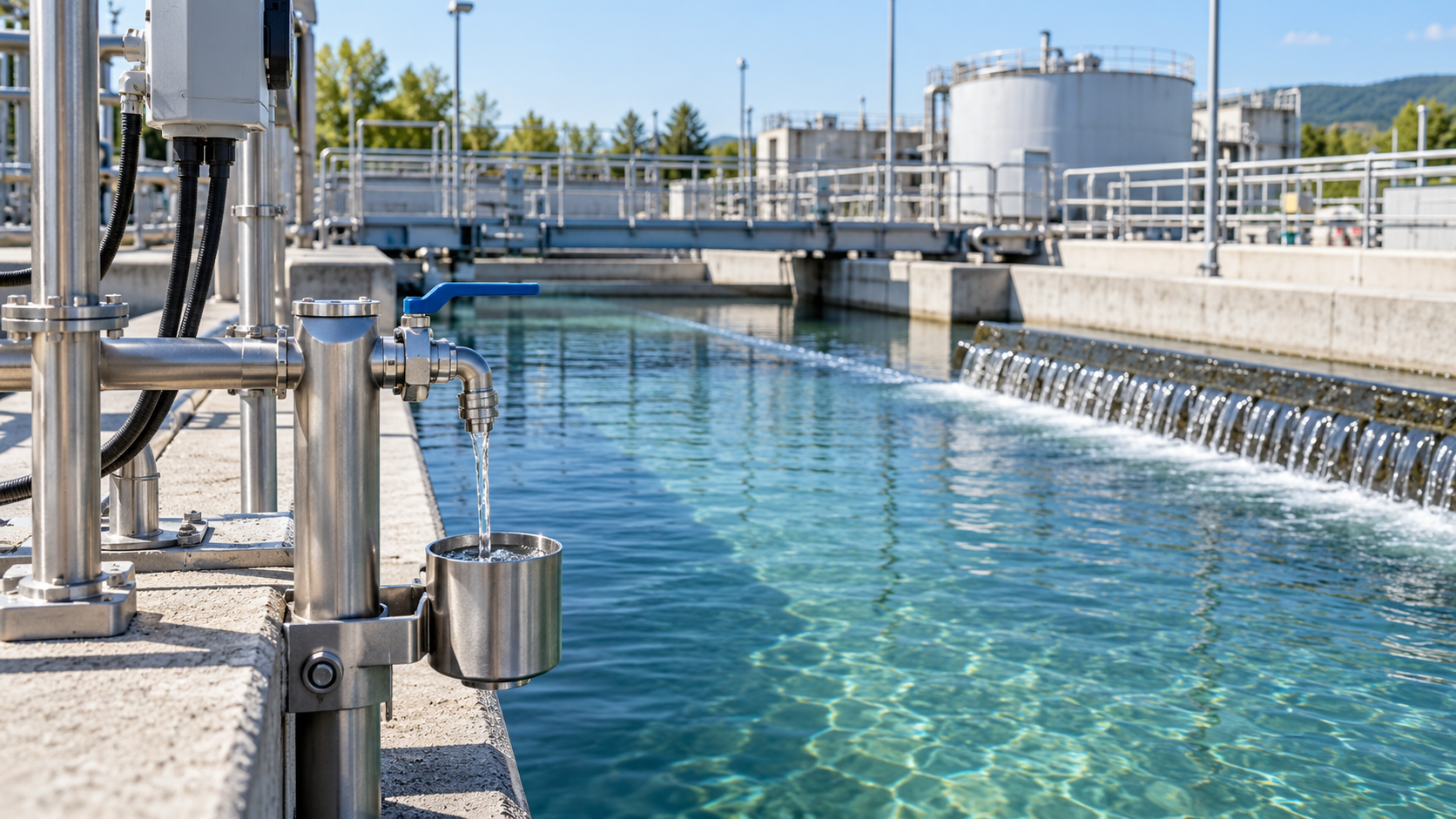

Collect samples at locations that represent the mixed effluent. A sample taken too soon after dosing may not reflect the final residual. A sample line with biofilm or stagnant water can distort a result. Confirm that grab samples, online analyzers, and laboratory checks agree within the method’s expected precision. Where they do not, investigate the measurement system before changing the process chemistry.
Monitor related parameters when they are relevant to the process and permit. Dissolved oxygen, pH, flow, temperature, and total residual chlorine can help explain a result that appears unusual. The appropriate set depends on facility design and regulatory requirements; this article does not establish a universal monitoring panel.
How underfeed and overfeed show up in operations
Underfeed or poor contact can leave a residual above the required limit. Possible causes include an increase in the incoming chlorine residual, a loss of pump output, an empty or degraded chemical supply, a blocked injection line, a broken flow signal, poor mixing, insufficient contact, or an analyzer that under-reports the true residual. The correct response is to confirm the measurement and inspect the process variables in a structured order.
Overfeed may be suspected when residual chlorine is consistently below the process target while sulfite use rises, or when dissolved oxygen and pH show a change consistent with excess reducing agent. A single low chlorine result is not proof of overfeed; the sample and instrument must be checked. An operator should avoid treating “non-detect” as an automatic command to increase or decrease feed without considering the permit and other effluent characteristics.
Possible overfeed causes include a feed pump set too high, a flow meter reading too low, a dosing control loop that responds to an incorrect signal, a change in solution strength, or poor timing between the adjustment and the sample. Chemical residual itself may be difficult to infer from chlorine measurement alone. Where required, use the facility’s validated methods to assess dissolved oxygen, pH, and other process indicators.
When a deviation occurs, stabilize the process under the site’s incident procedure, verify the applicable permit limit, confirm the measurement, and examine recent trends. Document any corrective action and notify the responsible supervisor or environmental compliance lead as required. If a discharge limit may have been exceeded, follow the facility’s reporting and escalation rules.
Comparing dechlorination options at a high level
The best option depends on facility scale, available equipment, operator capability, storage constraints, process variability, and the permit. The table below describes broad trade-offs; it is not a site-specific selection or performance guarantee.
| Option | Typical form | Planning consideration |
|---|---|---|
| Sodium metabisulfite | Dry salt or prepared solution | Can be practical for chemical feed systems; product concentration, dissolution, storage, and feed control must be confirmed. |
| Sodium bisulfite | Often supplied as a solution | Different compound and mass basis; compare active concentration, handling requirements, and equipment compatibility. |
| Sulfur dioxide | Compressed gas or liquefied supply | Requires specialized storage, handling, and safety controls; facility scale and trained operators are important factors. |
| Sodium thiosulfate | Solid or solution | May suit particular applications or smaller-scale use; performance, cost, and residual requirements need evaluation. |
| Activated carbon | Adsorption media | Can avoid chemical feed in some configurations, but capacity, media replacement, footprint, and operating cost matter. |
Changing from one option to another requires a process review. The chemical equivalent, feed concentration, reaction time, control instruments, safety procedures, and waste implications may all change. The design team should consider how the alternative behaves at minimum and maximum flow, during startup, during a pump failure, and when the incoming chlorine residual changes quickly.
Hydrogen peroxide is another oxidant/reductant used in some water and industrial applications, but it should not be treated as a drop-in substitute for sulfite. Review the separate article on industrial uses of hydrogen peroxide for broader context. Selection still depends on a qualified engineering assessment and the site’s discharge conditions.
Safety, storage, and operating controls
Handle sodium metabisulfite according to the product-specific Safety Data Sheet, site risk assessment, and applicable workplace rules. A safety document should be obtained for the exact product grade and supplier. Do not infer personal protective equipment, first aid, incompatibilities, or exposure limits from a generic article. Operators should be trained on the exact material, the feed system, emergency procedures, and the location of the current SDS.
Keep the chemical in compatible, clearly identified packaging and protect it from moisture and contamination in accordance with the supplier’s instructions. Store material in the designated area with appropriate segregation, spill controls, housekeeping, and access restrictions. The plant should assess dust exposure when handling dry product and consider the engineering controls and PPE specified by the SDS and facility assessment.
For prepared solutions, follow the supplier’s preparation and stability guidance and the site’s approved procedure. Use suitable vessels and feed lines, label prepared solutions with the required identity and date information, and prevent accidental mixing with incompatible chemicals. Never combine materials based on an assumption that both are “water treatment chemicals.”
Maintenance should include inspection of the storage vessel, transfer equipment, pump, suction line, injection point, check valves, calibration, alarms, and secondary containment as appropriate to the design. Provide a method to isolate the feed safely. Operators should know how to respond to leaks, blockages, power loss, and loss of analyzer feedback without improvising beyond approved procedures.
Purchasing teams can review the site’s global trade process guide when planning documentation and shipment coordination. Technical buyers should separately confirm grade, assay, lot identification, packaging, transport conditions, and the documents required by their facility before approving a shipment.
What to confirm when sourcing sodium metabisulfite
Procurement should start with the process specification rather than a broad chemical name. The purchase request can identify the intended application, required grade, specification or applicable standard, assay basis, packaging, target quantity, delivery location, documentation, and any compatibility requirements for storage or feed equipment. If the material is intended for water treatment, ensure that the proposed product is appropriate for that use and that the relevant quality documents are available.
Request current technical documentation and review the Certificate of Analysis for the delivered lot against the approved specification. Confirm that the product identity, concentration or assay, packaging, lot information, and SDS match what the plant evaluated. Supplier statements should be checked against the documents and regulatory framework applicable to the intended use. Do not use food-grade language as proof of suitability for a wastewater process, or assume that technical grade is suitable for any other regulated use.
Before a bulk commitment, establish a receiving inspection and non-conformance process. Decide who will verify the shipment, where the documents will be stored, how the lot is traced to the feed system, and what happens if the product is outside specification. Teams reviewing supplier qualification can also use Silvari Group’s information on reducing international trade risk as a broader checklist for documentation and logistics planning.
The product information for sodium metabisulfite is the relevant starting point for an inquiry about available supply. Confirm product grade, technical specification, current documentation, packaging, and delivery details directly before purchase. This article does not represent a particular batch specification or guarantee a delivery schedule.
Where a plant needs an ongoing supply relationship, its procurement review should cover traceability, communication, logistics resilience, and how changes in product or packaging will be communicated. Silvari Group’s overview of global sourcing and trade support can help buyers understand the company’s broader sourcing context, while the plant remains responsible for verifying suitability against its own requirements.
Common troubleshooting questions for operators
If the outlet chlorine residual rises unexpectedly, first confirm the sample and analyzer, then check the measured inlet residual, flow signal, pump output, chemical condition, injection line, and mixing. This sequence helps separate a measurement issue from a feed or hydraulic problem. It also reduces the chance of overcorrecting based on one reading.
If the feed rate appears high but the outlet residual remains high, inspect whether the chemical is reaching the flow and mixing evenly. A blocked line, empty day tank, air in a suction line, failed pump check valve, incorrect solution strength, or flow bypass can all create a gap between the panel setpoint and actual delivery. Verify the pump’s output safely and according to the maintenance procedure.
If readings fluctuate, compare the residual signal with flow, disinfection feed, wastewater characteristics, and the time delay through the contact zone. Check whether the analyzer is cycling, the sample line is stable, and the control loop has appropriate filtering and response. Avoid chasing noise with rapid manual adjustments. An engineer or instrumentation specialist may need to review the control logic and sample system.
If the plant detects a low dissolved oxygen result or a pH change, evaluate the full process data and recent feed changes. Excess sulfite can contribute to oxygen consumption and pH effects, but other causes may produce similar observations. Confirm the measurements and review the treatment train with qualified personnel before concluding that sodium metabisulfite is the sole cause.
If the chemical product changes, compare the new certificate, assay, solution concentration, physical form, and safety documents with the existing operating basis. Update the calculation, feed procedure, operator instructions, and emergency information where required. A brand or supplier change can alter practical feed settings even when the chemical name remains the same.
Summary: key takeaways
Sodium metabisulfite for dechlorination can be an effective process tool when the plant matches chemical feed to measured chlorine demand, provides complete mixing, and verifies the result at the correct sampling point. A theoretical ratio helps organize an initial calculation; plant data, safety procedures, engineering review, and permit requirements determine the actual operating strategy.
Operator and procurement checklist
- Confirm the applicable permit requirement and sampling location.
- Measure the actual chlorine residual and flow; record whether residual is free or total chlorine.
- Check the specific product identity, assay, SDS, Certificate of Analysis, and packaging.
- Use theoretical demand only as a documented starting estimate, not as a universal setpoint.
- Verify full mixing, contact conditions, feed equipment output, and analyzer calibration.
- Track chlorine residual with relevant pH, dissolved oxygen, and flow data when required.
- Document changes and follow the facility’s escalation and reporting procedures.
- Re-validate the operating basis after a process, product, flow, or permit change.
The strongest dechlorination program treats chemistry, hydraulics, instrumentation, safety, and compliance as one operating system. A modest theoretical calculation can orient the design, but a defensible plant setting comes from the actual stream, validated measurements, and the applicable permit.
What is sodium metabisulfite used for in wastewater treatment?
It can be used after chlorination to reduce free chlorine and certain inorganic chloramine residuals before discharge or reuse. Whether it is appropriate depends on the process design, permit, water matrix, product specification, and monitoring method.
What is the theoretical sodium metabisulfite-to-chlorine ratio?
EPA design material gives approximately 1.34 parts sodium metabisulfite by mass per part of residual chlorine on the stated chlorine-equivalent basis. Treat this as a theoretical starting reference, not an operating dose; field demand and product concentration must be verified.
Can operators use the theoretical ratio as a fixed dosing setting?
No. Flow, measured residual, chlorine species, product assay, mixing, contact, competing constituents, analyzer performance, and permit limits can change the required feed. Establish settings through site-specific engineering and controlled verification.
What happens if sodium metabisulfite is overdosed?
Excess sulfite can consume dissolved oxygen and may contribute to sulfate formation and lower pH. A low chlorine reading alone does not prove overfeed; verify the sample, instrument, process conditions, and related measurements.
How should chlorine residual be monitored after dechlorination?
Use the method, sampling location, frequency, and reporting basis required by the facility’s permit and approved procedures. Ensure the sample is representative after mixing and contact, and maintain and verify the analyzer or laboratory method.
Can sodium metabisulfite be substituted for sodium bisulfite?
The compounds are different and do not share the same mass basis, concentration, packaging, or handling requirements. A substitution requires a process calculation, product-document review, equipment check, and controlled validation by qualified personnel.
What documents should a buyer request for sodium metabisulfite?
Confirm the product specification, lot-specific Certificate of Analysis, Safety Data Sheet, grade and assay, packaging information, and any documents required by the facility or destination market. Verify the documents against the intended application before purchase.
References and further technical guidance
These technical sources support the general process discussion. Facility design and compliance decisions should use the current permit and the guidance applicable to the site.
- U.S. EPA, Wastewater Technology Fact Sheet: Dechlorination — process options, chemistry, and design considerations.
- Ontario, Design Guidelines for Drinking-Water Systems: Treatment and Chemical Application — dechlorination chemical forms and theoretical demand references.
- U.S. EPA, Dechlorination technical design material — theoretical mass relationships and cautions about overdosing and residual control.
